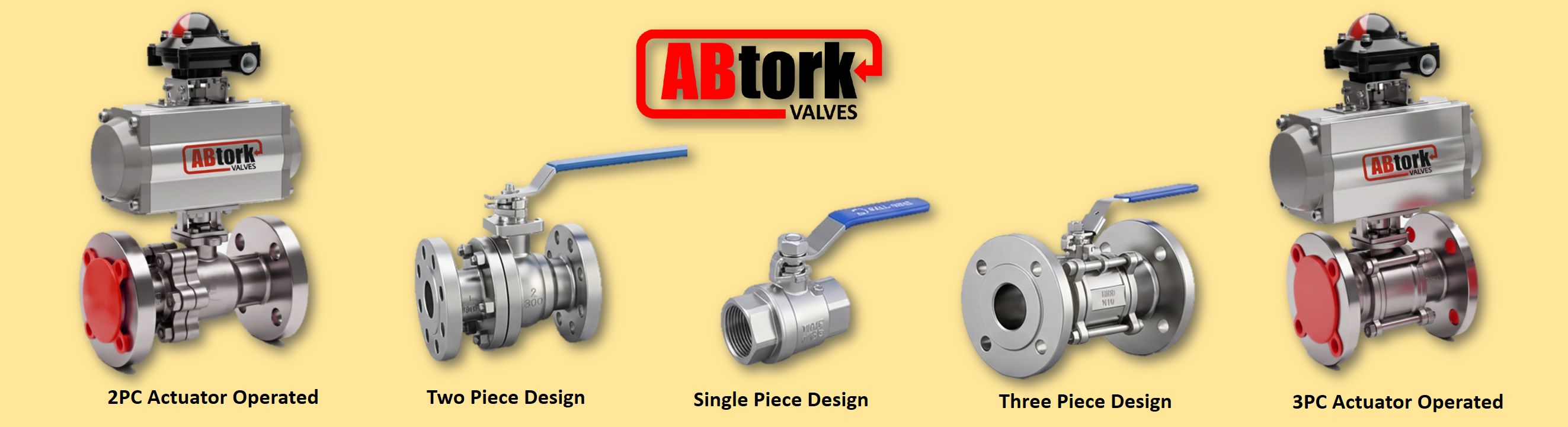

“ABtork” Make Manual & Actuator operated Ball Valves are precision-engineered to meet stringent industry-specific requirements and comply with the latest international standards. Designed for longevity and high-cycle performance, our valves ensure hassle-free operation across both critical isolation and precise regulating duty applications.
| Size Range | 15 mm to 200 mm |
|---|---|
| Design / Construction | Single Piece / Two Piece / Three Piece |
| End Connections | Screwed End / Flanged End / SW / BW / TC |
| Flow Paths / Ports | 2 Way / 3 Way / 4 Way |
| Design & Manufacturing Standards | ASME B16.34 / BS 5351 / BS EN ISO 17292 / API 6D |
| Valve Face to Face Dimensions | ASME B16.10 / API 6D |
| Flange Standard / Pressure Rating | ASME B16.5 Class 150 / 300 / 600 / 800 |
| Inspection & Testing | API 598 / BS EN ISO 17292 / BS EN 12266-I |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |

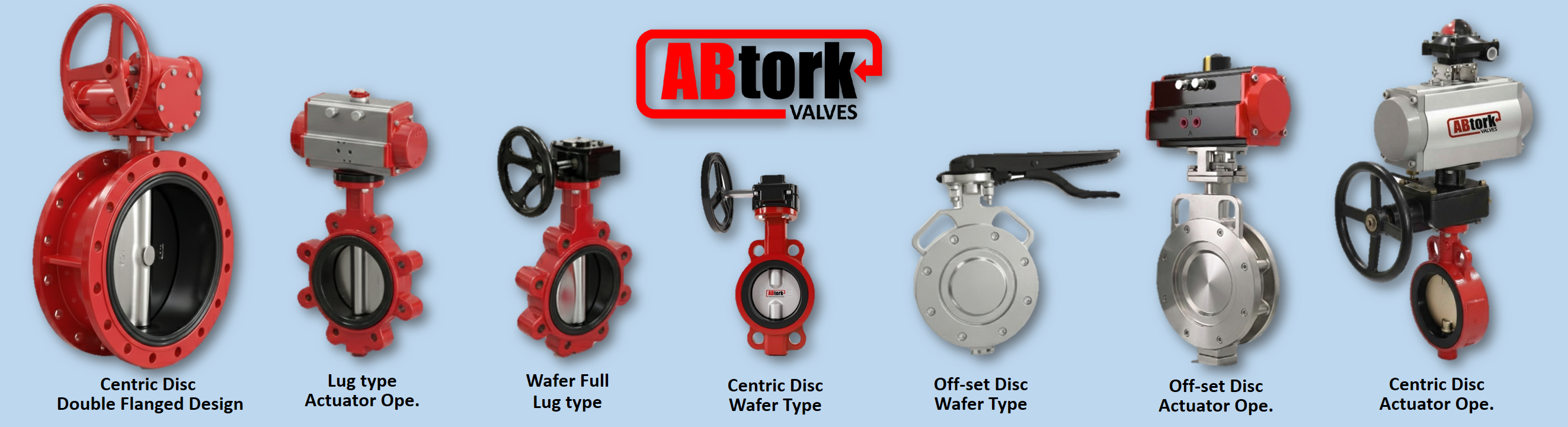

“ABtork” Make Wide Range of Butterfly Valves designed to bridge the gap between complex industrial demands and reliable fluid control. Engineered for bubble-tight isolation and precise modulating duty, our valves ensure consistent high-cycle performance in Water Works, Steel & Power Generation, Chemical Processing, Food & Pharma and other industries.
| Size Range | 50 mm to 1200 mm (2 Inch to 48 Inch) |
|---|---|
| Design / Construction | Concentric / Double Eccentric / Triple Eccentric Wafer / Full Lug / Semi Lug / Double Flanged |
| Design & Manufacturing Standards | BS 5155 / BS EN 593 / IS 13095 / AWWA C 504 / API 609 CAT A & B |
| Valve Face to Face Dimensions | BS EN 593 / IS 13095 / AWWA C 207 / API 609 CAT A & B |
| Flange Standard / Pressure Rating | ASME B16.5 Class 150 / 300 / 600 / 800 PN6 / PN10 / PN16 / PN20 / PN24 |
| Inspection & Testing | API / BS EN / AWWA Standards |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |

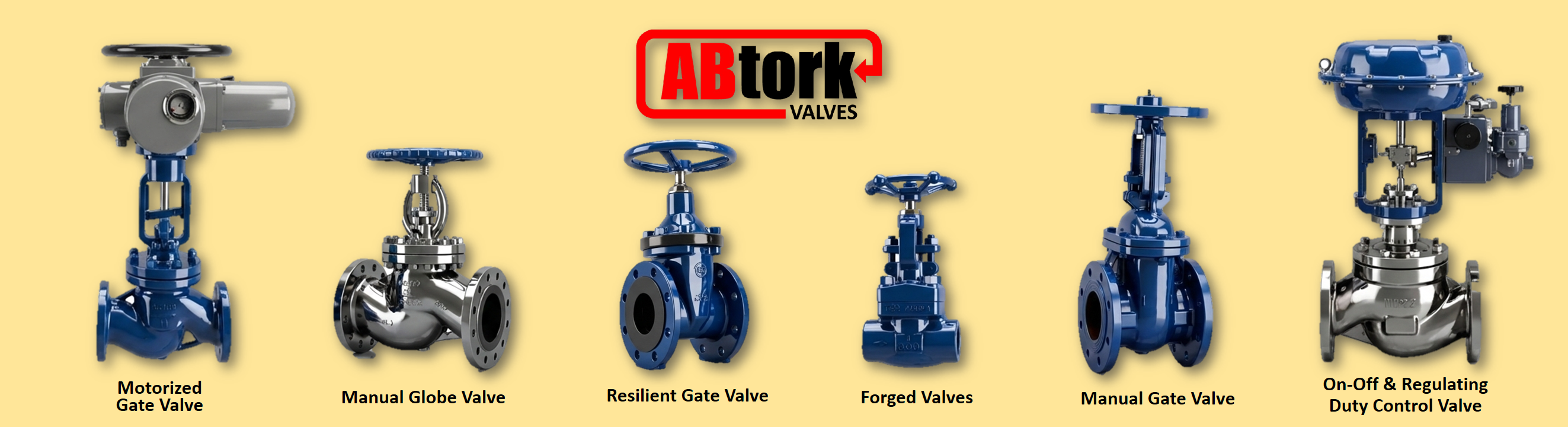

“ABtork” manufactured Gate Valves and Globe Valves are designed and produced in strict accordance with international industry standards. Built with high-quality metallurgy and precision engineering, these valves ensure dimensional accuracy, durability and superior service life while reducing total cost of ownership.
| Size Range | 15 mm to 600 mm (Up to 24” Inch) – Above on Request |
|---|---|
| Design / Construction | OS & Y Construction / Rising & Non-Rising Spindle |
| End Connections | Screwed End / Butt Weld End / Flanged End |
| Flow Paths / Ports | 2 Way / 3 Way |
| Design & Manufacturing Standards |
Gate Valve: API 600 / BS 1414 Globe Valve: BS 1873 / ASME B16.10 |
| Flange Standard / Pressure Rating | ASME B16.5 – Class 150 / 300 / 600 / 800 |
| Inspection & Testing | API 598 / ISO 5208 |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |

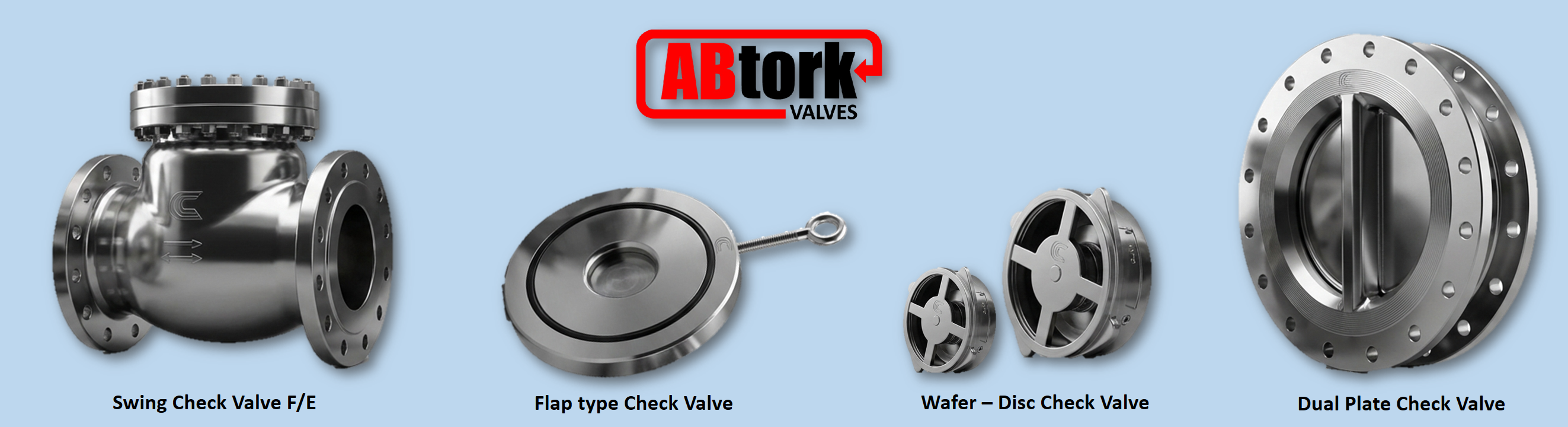

“ABtork” offers a comprehensive portfolio of Check Valves engineered for reliable non-return flow control across diverse industrial applications. Designed for durability, low pressure drop, and long service life, our check valves ensure dependable protection against reverse flow and water hammer.
| Application | Non-Return Flow |
|---|---|
| Size Range | 50 mm to 600 mm (Up to 24”) |
| ANSI Class / Pressure Rating | Class 150 / 300 |
| Design Standard | API 594 / API 6D |
| Testing Standard | API 598 |
| Face to Face Standard | ASME B16.10 |
| End Connection Standard | Wafer or Flanged End to suit ASME B16.5 |
| Ends | Flanged End / Wafer End |
| Operation | Self / Automatic |

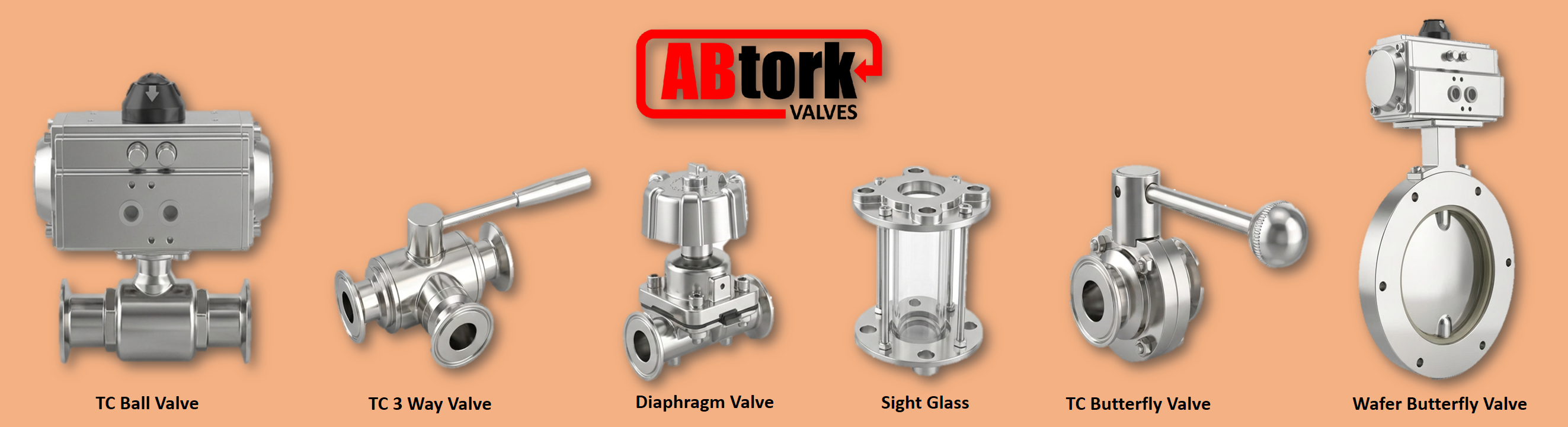

“ABtork” manufactured Pharma & Sanitary Valves are designed to meet high hygienic and zero-leakage requirements for Pharmaceutical, Food, Dairy and Biotechnology industries. Engineered with sanitary construction and quick clamp-style connections, these valves ensure contamination-free flow control and easy Clean-in-Place (CIP) maintenance.
| Size Range |
Ball Valve: 15 mm – 100 mm (½” – 4”) Butterfly Valve: 25 mm – 300 mm (1” – 12”) Diaphragm Valve: 15 mm – 80 mm (½” – 3”) Flush Bottom Valve: 25 mm – 100 mm (1” – 4”) Sight Glass Valve: 15 mm – 200 mm (1” – 8”) |
|---|---|
| Common Applications |
Drug Manufacturing & Formulation Biotechnology & Cosmetics Sterile Processing & Cleanrooms Dairy, Beverage & Food Processing |
| End Connections | Triclover End / SMS Union End / Wafer Type / Flanged End |
| Pressure Rating | Generally PN10 / PN16 |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |
“ABtork” Knife Gate Valves are precision-engineered in accordance with international industrial standards for reliable ON-OFF isolation in demanding applications. Specifically designed to handle thick, abrasive and clogging media, these valves are ideal for sludge, slurry, pulp, heavy liquids and bulk solids handling.
| Size Range | 50 mm to 600 mm (Up to 24”) |
|---|---|
| Design / Construction | Uni-directional / Bi-directional |
| End Connections | Wafer / Semi Lugged / Full Lugged / Flanged End |
| Flow Path / Ports | Full Port / V-Port |
| Design & Manufacturing Standards | MSS SP 81 / MSS SP 148 |
| Flange Standard Conformity | PN10 Table D / ASME B16.5 Class 150 |
| Pressure Rating | Generally PN6 / PN10 |
| Inspection & Testing | MSS SP 81 / API 598 |
| Operation | Manual / Gear / Chain Wheel / Pneumatic / Electric (Motorised) |

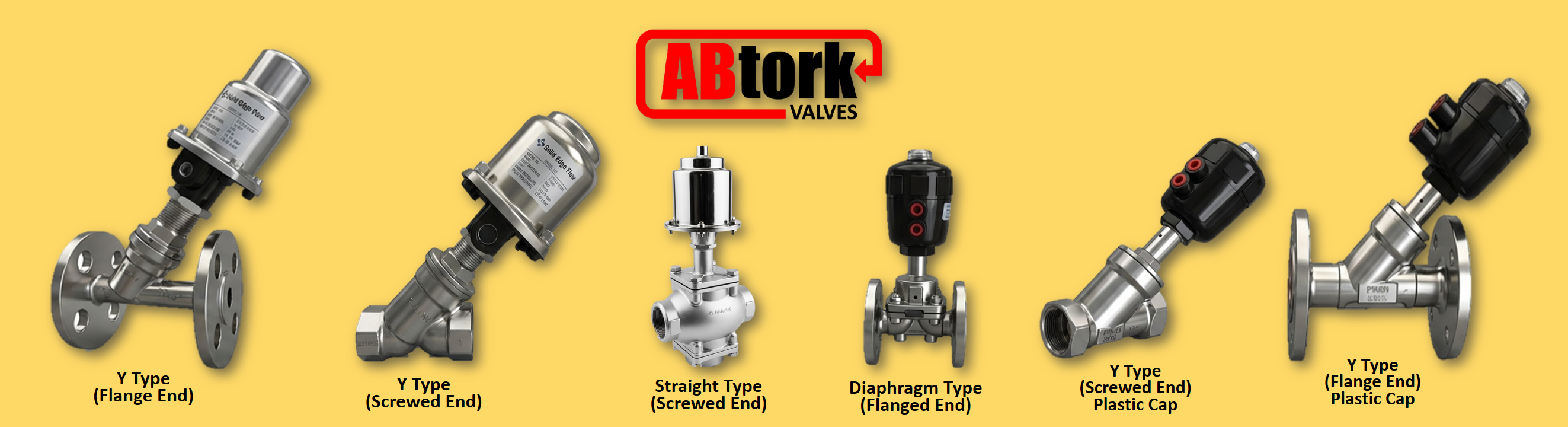

“ABtork” manufactures a wide range of Quick Shut-Off Valves available in Angle-Type and Straight-Pattern configurations. Engineered for mission-critical applications, these valves deliver rapid actuation, leak-tight isolation, and precise regulating duty for Air, Water, Gas, Steam, and other industrial media.
| Size Range | 15 mm to 100 mm (Up to 4”) |
|---|---|
| Application | Quick Shut-Off |
| Valve Pattern | Angle Type / Straight Pattern |
| Flow Configuration | 2 Way / 3 Way |
| End Connections | Screwed End / Flanged End / TC (Tri-Clamp) |
| Pressure Range | 10 Bar / 16 Bar / Up to 40 Bar (On Request) |
| Temperature Range | -10°C to 180°C |
| Service Media | Steam, Air, Water, Chemical, Gas, Oil, Diesel, Hot Water |
| Cycle Life | More than 10 Million Cycles |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |
“ABtork” offers a comprehensive range of 2/2 Way Solenoid Valves designed to meet the demanding requirements of modern process industries. Engineered for reliability and rapid switching, these valves provide a compact, economical solution for controlling Air, Water, Gas, Oil, and Steam using standard AC or DC power supply.
Our valves are selected considering critical operating parameters such as media type, pressure, temperature, and voltage compatibility, ensuring optimal performance in diverse industrial environments.
| Pressure Rating | Generally PN10 / PN16 (Higher Pressure Available on Request) |
|---|---|
| Size Range | 15 mm to 100 mm |
| Body & Bonnet | Brass / CF8 (SS304) / CF8M (SS316) |
| Diaphragm | NBR / Nitrile / Viton / PTFE |
| Coil Enclosure |
Weather Proof up to IP67 Waterproof IP69 (On Request) Flameproof (Explosion Proof) IP67 – Class F / Class H |
| End Connections | Screwed End BSP(F) / NPT(F) / Flanged End (Class 150) |
| Operation Type | Direct Acting / Internal Pilot Operated / Semi-Pilot Operated |
In Chemical, Pharmaceutical and Fertilizer industries, process lines handle highly aggressive media such as concentrated acids, alkalis and high-purity solvents. Lined valves provide the ideal solution by combining the mechanical strength of metal with the superior chemical resistance of high-performance fluoropolymers.
“ABtork” offers a comprehensive portfolio of high-performance PFA/FEP Lined Valves engineered for maximum chemical resistance, zero leakage, and long service life in corrosive environments.
| Size Range | 15 mm to 400 mm |
|---|---|
| Design / Construction |
Single Piece / Two Piece Lining Lining Thickness: 3 mm to 5 mm (Minimum) |
| End Connections | Wafer Type / Flanged End |
| Design & Manufacturing Standards |
Ball Valve – ASME B16.34 / API 608 Butterfly Valve – API 609 / MSS SP-67 |
| Face to Face Dimensions | ASME B16.10 / API 609 / DIN EN 558-1 |
| Flange Standard Conformity | ASME B16.5 Class 150 / PN10 Table D |
| Pressure Rating | Generally PN10 / PN16 |
| Inspection & Testing | API 598 / BS EN ISO 17292 / BS EN 12266-1 |
| Operation | Manual / Gear / Pneumatic / Electric (Motorised) |
Every valve undergoes a 15–20 KV Spark Test on the lining to ensure 100% lining integrity and zero pinholes before dispatch.

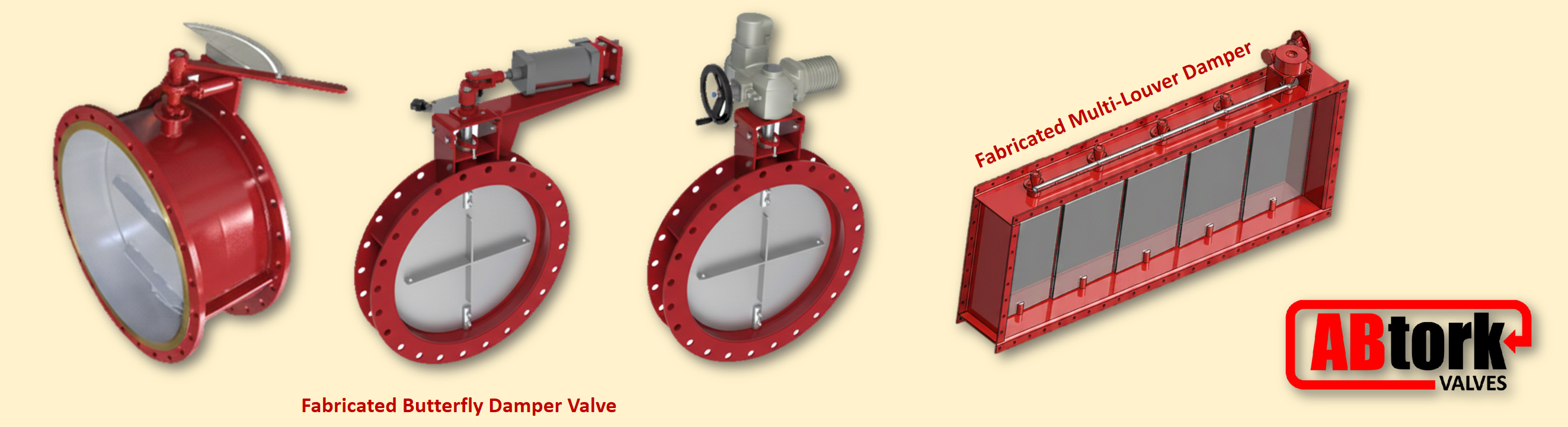

Fabricated Multi-Louver and Butterfly Dampers are essential components in industrial ducting systems for regulating air, flue gas, and other low-pressure media. While both are designed for flow control, they differ in construction, control precision, and application suitability.
| Size Range | 50 mm to 3000 mm (2” to 120”) |
|---|---|
| Design / Construction | Fabricated – Single Blade / Multi-Blade |
| End Connections | Wafer / Double Flanged (Others on Request) |
| Design & Manufacturing | As per Manufacturer Standard or Customized as per Client Requirement |
| Flange Standard Conformity | Usually EN 1092 & Various Drilling Standards (Customizable) |
| Pressure Rating |
Multi-Louver: Up to 50 kPa (0.5 Bar) – Higher on Request Butterfly Damper: Low Pressure (Typically PN 0.6 to PN 2.5) |
| Leakage Efficiency | 95% to 98% Metal-to-Metal Sealing Across Duct |
| Operation | Manual / Pneumatic / Electric |
